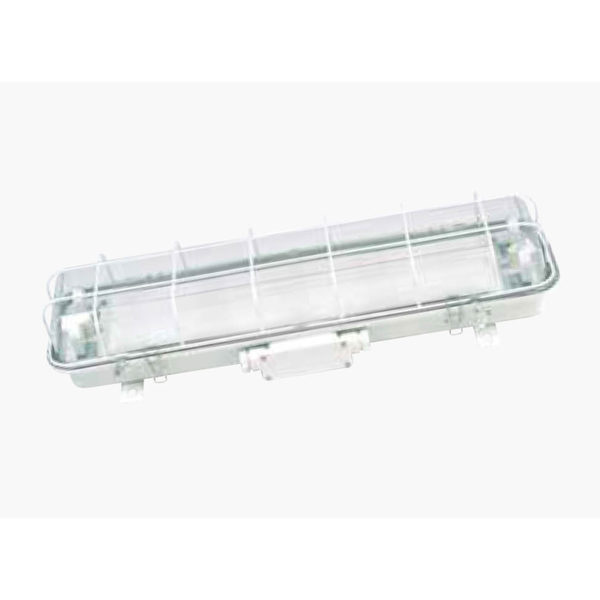

ZYC23LED
The lamp is suitable for illumination for dry compartments of all types of vessels.
- Description
- TECHNICAL SPECIFICATION
- IP PROTECTION CLASS EXPLANED
Description
Description
The lamp is suitable for illumination for dry compartments of all types of vessels, such as living cabin crew and passengers, rest room, dining room, cab, telegraph room and within the corridors and other places.
Products feature:
- The lamp housing is stretched and formed by a high-quality cold-rolled plate and the surface is powder coated with white acid
- The lampshade is injection molded with transparent impact polycarbonate, and the lampshade seal-ring is made of foamed silicone rubber and has a good sealing performance
- In order to ensure the safety of the electricity, the inside and outside from the lamp is equipped with connection bridge
- The LED light soure has a long life, high intensity and low energy consumption
- Equipped with 24V / 1.5 W Emergency LED light source, as a temporary light when the power turns off. The lampshade has a red remark on it.
- The outer diameter of the cable is 1 – 13 mm
Adopt standard and products certification:
- Conforms the International Standard IEC 60598-1-2008
- Comply with the Classification Rules for seagoing steel vessels
- Type approval by China Classification Society (CCS)
TECHNICAL SPECIFICATION
| Type | LZYC23-2 | ZYC23-2L |
|---|---|---|
| Material | Shell cold-rolled plate by mold pressing, powder coated after anti-acid white. Lampshade transparent impact resistant polycarbonate plastic. | |
| Light source | LED Tube | LED Module |

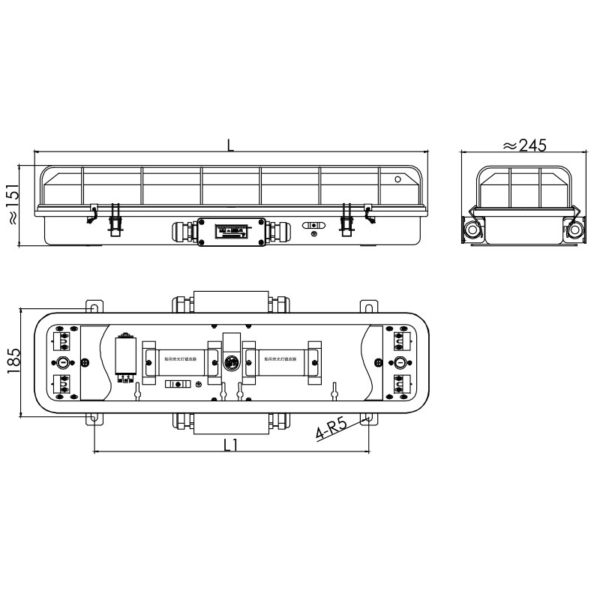

| Product Size (mm) | 690 x 233 x 130 | 690 x 233 x 130 |
| Rated voltage | 240V | 240V |
| Power | LED Tube | 2 x 12W |
| Frequency | 50/60Hz | 50/60Hz |
| Operating temperature | -20 to 55°C | -20 to 55°C |
| Protection class | IP44 | IP44 |
| Cable diameter (mm) | 10-13 | 10-13 |
| Color | White | White |
| Weight Gross / Net | 4,8kg | 4,8kg |
| Adopt standards | IEC60598-1-2008 | IEC60598-1-2008 |
